Curling Dies

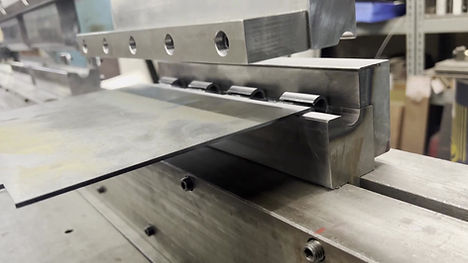

Die sets #123 and #123A produce the tightest and roundest curl that can be formed in two strokes. Dies can be mounted side by side for progressive forming if press has sufficient length.

124 Curling. Riteway Brake Dies. Press Brake Dies

If press length is a problemm set #124 will provide a clean curl in a one-set two-hit operation.

123 Curling. Riteway Brake Dies. Press Brake Dies

Die set #125 and #125A is a standard curling die set for regular edge bending. Available for any metal; specify diameter desired.

125 Curling. Riteway Brake Dies. Press Brake Dies
125A Curling. Riteway Brake Dies. Press Brake Dies
122 Curling. Riteway Brake Dies. Press Brake Dies
122A Curling. Riteway Brake Dies. Press Brake Dies

Die sets #122 and #122A should be considered when an accurate on center curl is desired. These dies may be used to produce a curl from 1/4" inside diameter to 1/2" diameter in light gage material. A minimum flat appears on the lead edge, and the sheet remains relatively flat during the forming operation. The sheet to be formed must be wide enough t o provide for a reasonable amount of stock to extend in front of the die sets for safe feeding of the part.

Die set #121 will produce an off-center curl, 1/4" to 3/4" diameter, in 16 ga. material, in three strokes.

121 Curling. Riteway Brake Dies. Press Brake Dies
123A Curling. Riteway Brake Dies. Press Brake Dies
