Gooseneck Punches

Gooseneck Punch #33. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #31. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #29. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #27. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #25. Riteway Brake Dies. Press Brake Dies

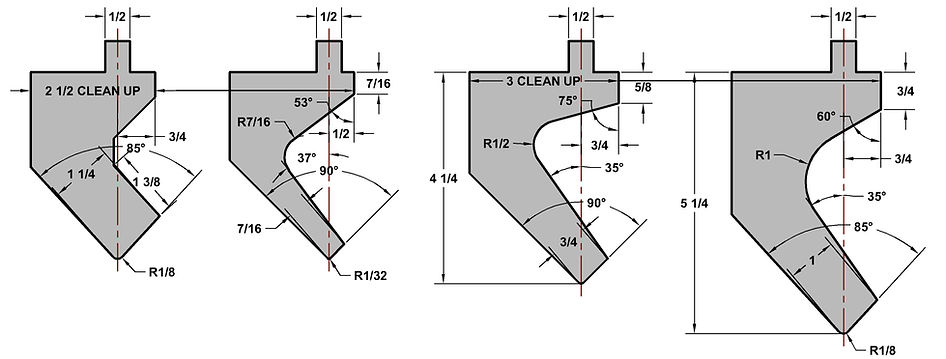

The Gooseneck punches below are cut back beyond the center line allowing longer return flanges. Because of the taper on the inside of the gooseneck, the width of channel must be increased.

Gooseneck Punch #37. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #35. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #39. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #41. Riteway Brake Dies. Press Brake Dies

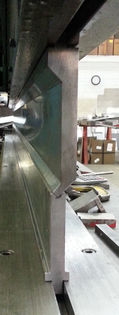

The special gooseneck punches below may be used to form boxes and channels with long return legs.

Gooseneck Punch #129. Riteway Brake Dies. Press Brake Dies
Gooseneck Punch #130+130A. Riteway Brake Dies. Press Brake Dies

For forming special shapes where 90 degree punch would interfere, or when channel forming in two strokes gooseneck punches are ideal.  The width of face and the length of return flange are shown.  If longer return flange are required the punches can be cut back beyond the center line, but the work capacity of the punch is reduced. They are used with 90 degree female dies.
