Hinge & Beading Dies

Hinge Die Set 124. Riteway Brake Dies. Press Brake Dies

If press length is a problemm set #124 will provide a clean curl in a one-set two-hit operation.

Die set #121 will produce an off-center curl, 1/4" to 3/4" diameter, in 16 ga. material, in three strokes.

Hinge Die Set 122A. Riteway Brake Dies. Press Brake Dies

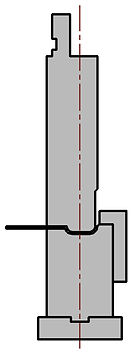

Hinge Die Set 122. Riteway Brake Dies. Press Brake Dies

Die sets #122 and #122A should be considered when an accurate on center curl is desired. These dies may be used to produce a curl from 1/4" inside diameter to 1/2" diameter in light gage material. A minimum flat appears on the lead edge, and the sheet remains relatively flat during the forming operation. The sheet to be formed must be wide enough t o provide for a reasonable amount of stock to extend in front of the die sets for safe feeding of the part.

Hinge Die Set 121. Riteway Brake Dies. Press Brake Dies

Die sets #123 and #123A produce the tightest and roundest curl that can be formed in two strokes. Dies can be mounted side by side for progressive forming if press has sufficient length.

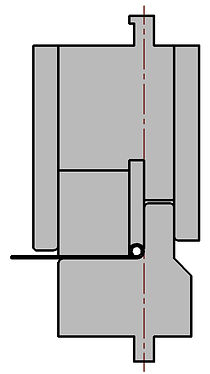

Hinge Die Set 123A. Riteway Brake Dies. Press Brake Dies

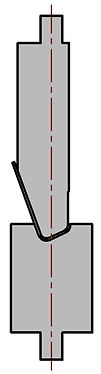

Hinge Die Set 123. Riteway Brake Dies. Press Brake Dies
Hinge Die Set 125. Riteway Brake Dies. Press Brake Dies
Hinge Die Set 125A. Riteway Brake Dies. Press Brake Dies

Die set #125 and #125A is a standard curling die set for regular edge bending. Available for any metal; specify diameter desired.

Set 95. Riteway Brake Dies. Press Brake Dies

For producing a radius rib, set #95 is very popular!

Set 96. Riteway Brake Dies. Press Brake Dies

Small open hat channels can be produced by set #96!

Set 97. Riteway Brake Dies. Press Brake Dies

Set #97 produces a vee rib in one stroke!
